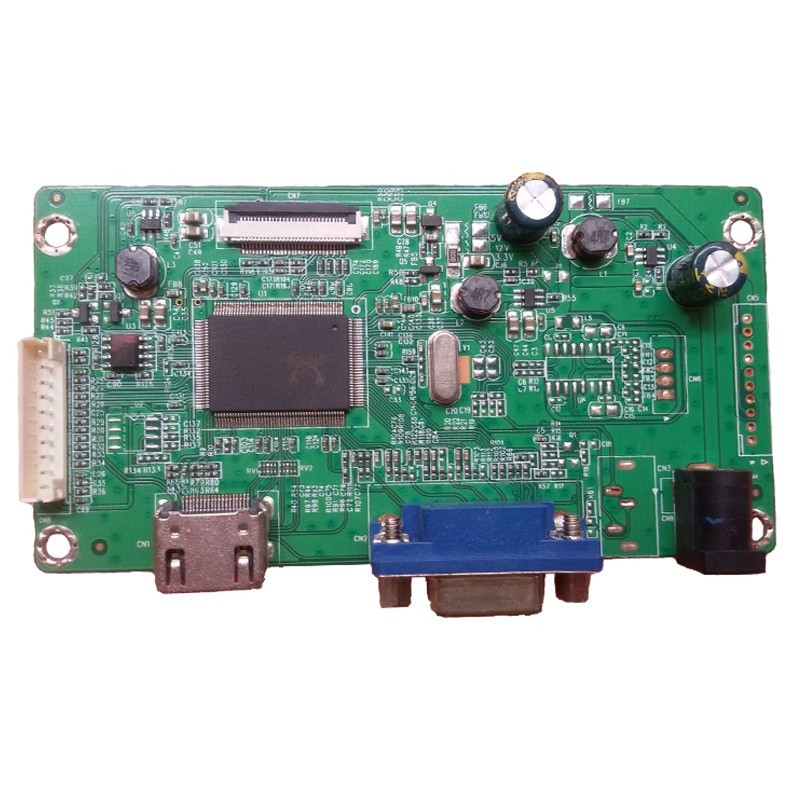

RTD2556-1A1H VGA HDMI LCD Controller Board with eDP Output

Model:RTD2556-1A1H
Input: VGA/HDMI
Support Resolution: Max 1920x1200
Panel signal Input: eDP
Product description: RTD2556-1A1H VGA HDMI LCD Controller Board with eDP Output

Chipset	RTD2556-CG
Support Signal	PC	Support Max Resolution	1920*1200
Color	32bit
Horizontallyfrequency range	31.5-94.038KHz
Field Frequencyrange	60-75Hz
Interface	Input	VGA	RGB(0.7Vp-p)，
Input	HDMI	HDMI（T.M.D.S）
Input	Audio	(1.0Vp-p)
Output	Panel interface	0.5mm distance 30pin FFC connector
Output	Earphone audio	（option）
Power	Input power	12V DC
Panel Voltage	3.3V/5V/12V available
Standby Power	＜0.3W
OSD Language	Chinese,English,etc.

VGA Mode Table
Mode	Resolution	Horizontally Frequency (KHz)	Field Frequency (Hz)
WUXGA	1920*1200	74.556	60
WUXGA	1920*1080	67.5	60
UXGA	1680*1050	59.8	60
WXGA+	1440*900	55.5	60
SXGA	1280*1024	63.5 80.0	60 75
XGA	1024*768	48.4 56.5 60.0	60 70 75
SVGA	800*600	37.9 47.2 46.9	60 72 75
VGA	640*480	31.5 37.9 37.5	60 72 75
DOS	720*400	31.5	70
