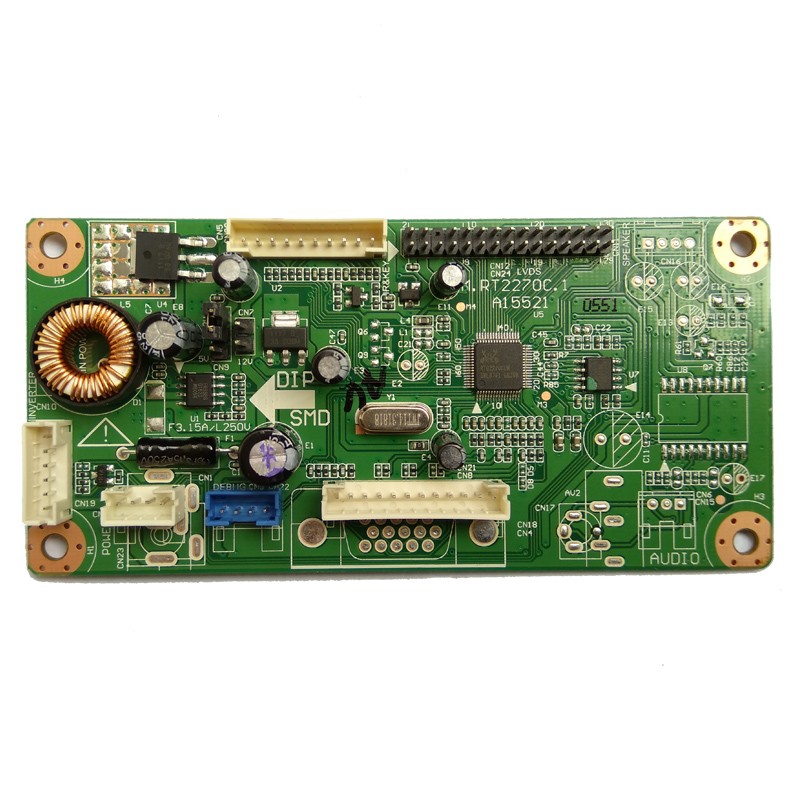

Model:M.RT2270C.1
Input: VGA
Support Resolution: Max 1920x1080
Panel Signal: Single/Dual LVDS (8 bit)
Product description: M.RT2270C.1 LCD Display Controller Board with VGA connector, LVDS panel signal output,support Max resolution 1920x1200 and 1920x1080
M.RT2270C.1 is a monitor control board，The resolution is up to 1920x1080. Its color reach 24bit potentially. H-Frequency signal range from 30 to 80 KHz, V-Frequency signal 60 to 75 Hz. M.RT2270C.1 supports synchronize automatic detection and Dynamic Contrast Control, apply to Sync Separator for extracting Hsync and Vsync.
