  • MT01B LCD Display Controller Board with USB TYPE-C HDMI Input
  • MT01B LCD Display Controller Board with USB TYPE-C HDMI Input
MT01B LCD Display Controller Board with USB TYPE-C HDMI InputMT01B LCD Display Controller Board with USB TYPE-C HDMI Input

MT01B LCD Display Controller Board with USB TYPE-C HDMI Input

  • Model:MT01B
  • Input: HDMI/USB/TYPE-C/
  • Support Resolution: Max 1920x1200
  • Panel Signal: Single/Dual LVDS (8 bit)

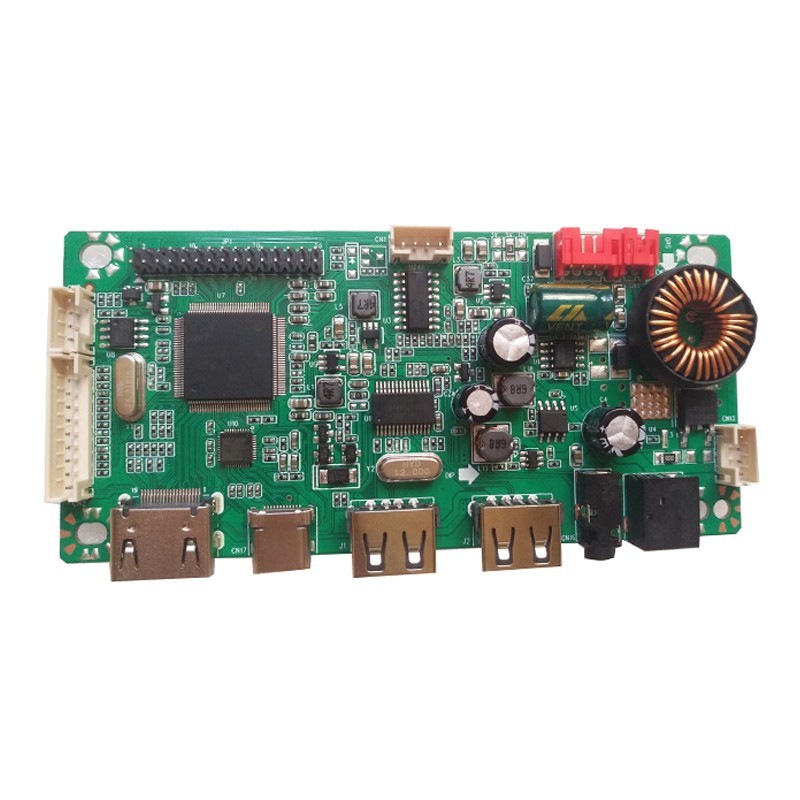

  • Product description: MT01B LCD Display Controller Board with USB TYPE-C HDMI Input Terminal, LVDS panel signal output,support Max resolution 1920x1200 and 1920x1080
  • INQUIRY

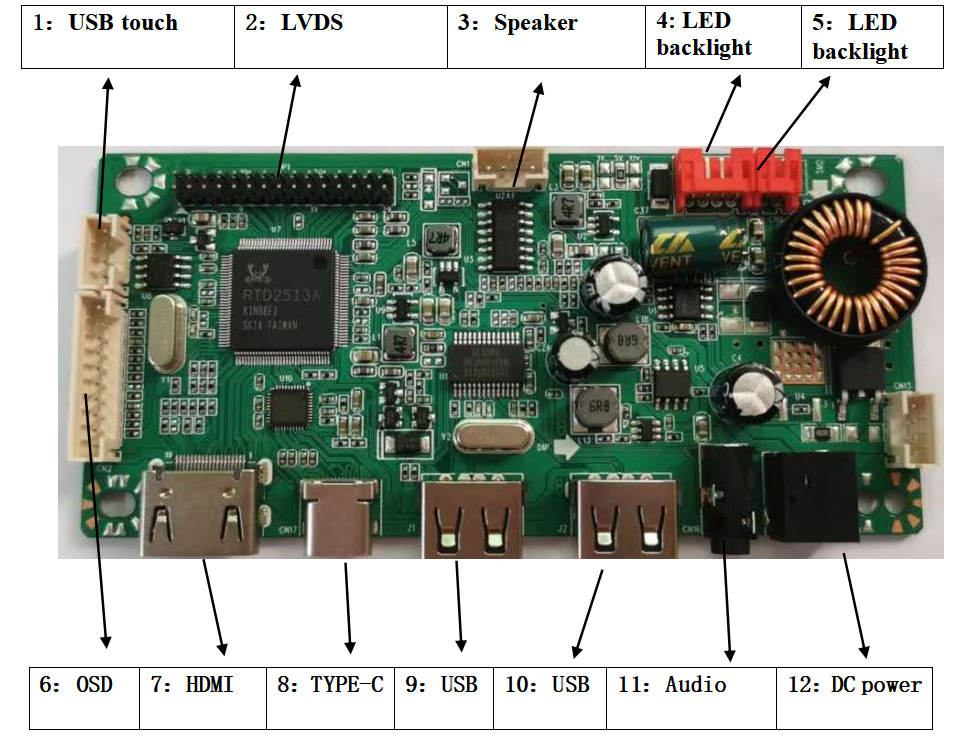

MT01B is a monitor control boardThe resolution is up to 1920x1200. Its color reach 24bit potentially. H-Frequency signal range from 31.5 to 99.5 KHz, V-Frequency signal 60 to 75 Hz.



TYPE-C Mode Table

Mode

Resolution

H-Frequency (KHz)

V-Frequency (Hz)

WUXGA

1920*1200

74.6

60

FHD

1920*1080

67.5

60

WSXGA+

1680*1050

65.3

60

WXGA+

1440*900

55.9

60

WXGA

1366*768

47.7

60

SXGA

1280*1024

64

60

XGA

1024*768

47.8

60

SVGA

800*600

37.9

60

VGA

640*480

31.5

60

DOS

720*400

37.9

70



HDMI Mode Table

Mode

Resolution

H-Frequency (KHz)

V-Frequency (Hz)

WUXGA

1920*1200

74.6

60

FHD

1920*1080

67.5

60

WSXGA+

1680*1050

65.3

60

WXGA+

1440*900

55.9

60

WXGA

1366*768

47.7

60

SXGA

1280*1024

64

60

XGA

1024*768

47.8

60

SVGA

800*600

37.9

60

VGA

640*480

31.5

60

DOS

720*400

37.9

70


TYPE-C Equipment Table

设备

分辨率

Lenovo YOGA

C940

Max: 1080P@60Hz

HP TPN-C132

Max: 1080P@60Hz

Chrome Book

201608003

Max: 4K@60Hz

MACBook PRO

10.15.1

Max: 4K@60Hz

MacBook Pro

10.13.6

Max: 4K@60Hz

MacBook

10.11.6

Max: 1080P@60Hz

MacBook

10.13.3

Max: 1080P@60Hz

MacBook

10.10.4

Max: 1080P@60Hz

MacBook

10.13.3

Max: 1080P@60Hz

iPad PRO 12.1

Max: 1080P@60Hz

Samsung Galaxy

S8

Max: 1080P@60Hz

Samsung Galaxy

S8+

Max: 1080P@60Hz

Samsung Galaxy

S9+

Max: 1080P@60Hz

Samsung Galaxy

S10

Max: 1080P@60Hz

Samsung Galaxy

Note9

Max: 1080P@60Hz

OPPO

R17 PRO

Max: 1080P@60Hz

HUAWEI P20

Max: 1080P@60Hz

HUAWEI P30

Max: 1080P@60Hz

HUAWEI P40

Max: 1080P@60Hz

HUAWEI MATE10

Max: 1080P@60Hz

HUAWEI MATE20

Max: 1080P@60Hz

HUAWEI MATE30

Max: 1080P@60Hz

HUAWEI

KLVC-WAH9L

Max: 1080P@60Hz

Lenovo MIIX510

Max: 1080P@60Hz

Lenovo 小新14ARE 2020

Max: 1080P@60Hz

nubia 红魔5G

Max: 1080P@60Hz

小米黑鲨2

Max: 1080P@60Hz
