  • RTD2556_eDP_1H HDMI Monitor Controller Board with eDP Output

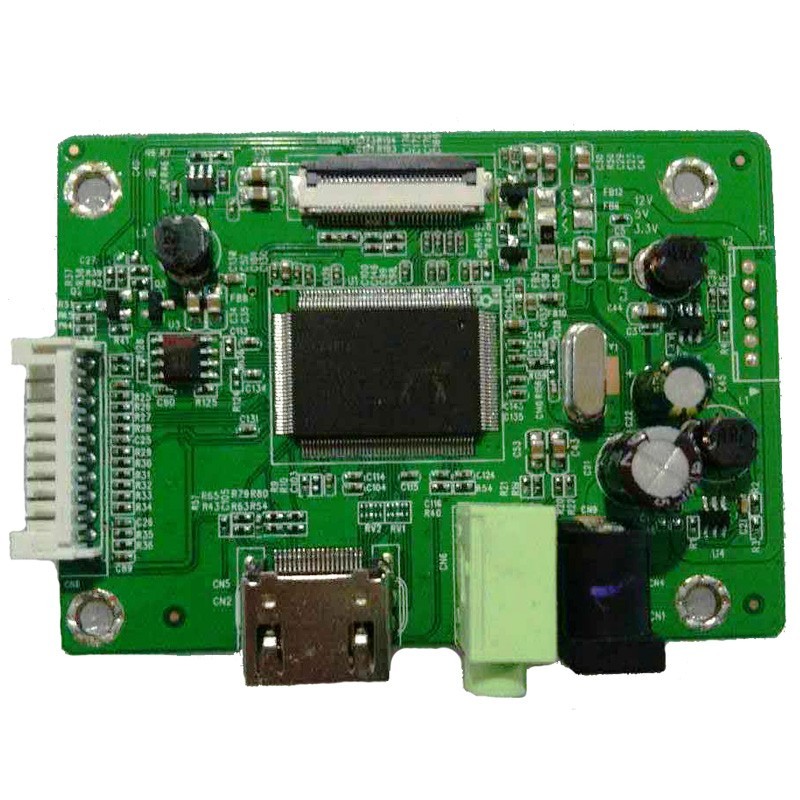

RTD2556_eDP_1H HDMI Monitor Controller Board with eDP Output

RTD2556_eDP_1H HDMI Monitor Controller Board with eDP Output

  • Model:RTD2556_eDP_1H
  • Support Resoliton: Max 1920x1200
  • Input: HDMI
  • Panel signal Input: eDP
  • Product description: RTD2556_eDP_1H HDMI Monitor Controller Board with EDP Output
  • INQUIRY

Chipset

RTD2556-CG

Input

HDMI

Output

Panel interface 0.5mm distance 30pin FFC

Output

Earphone audio

Power

Input power 12V DC

Panel Voltage

3.3V/5V/12V available

Standby Power

0.3W

OSD Language

Chinese,English,etc.



VGA Mode Table

Mode

Resolution

Horizontally Frequency

(KHz)

Field Frequency

(Hz)

WUXGA

1920*1200

74.556

60

WUXGA

1920*1080

67.5

60

UXGA

1680*1050

59.8

60

WXGA+

1440*900

55.5

60

SXGA

1280*1024

63.5
80.0

60
75

XGA

1024*768

48.4
56.5
60.0

60
70
75

SVGA

800*600

37.9
47.2
46.9

60
72
75

VGA

640*480

31.5
37.9
37.5

60
72
75

DOS

720*400

31.5

70

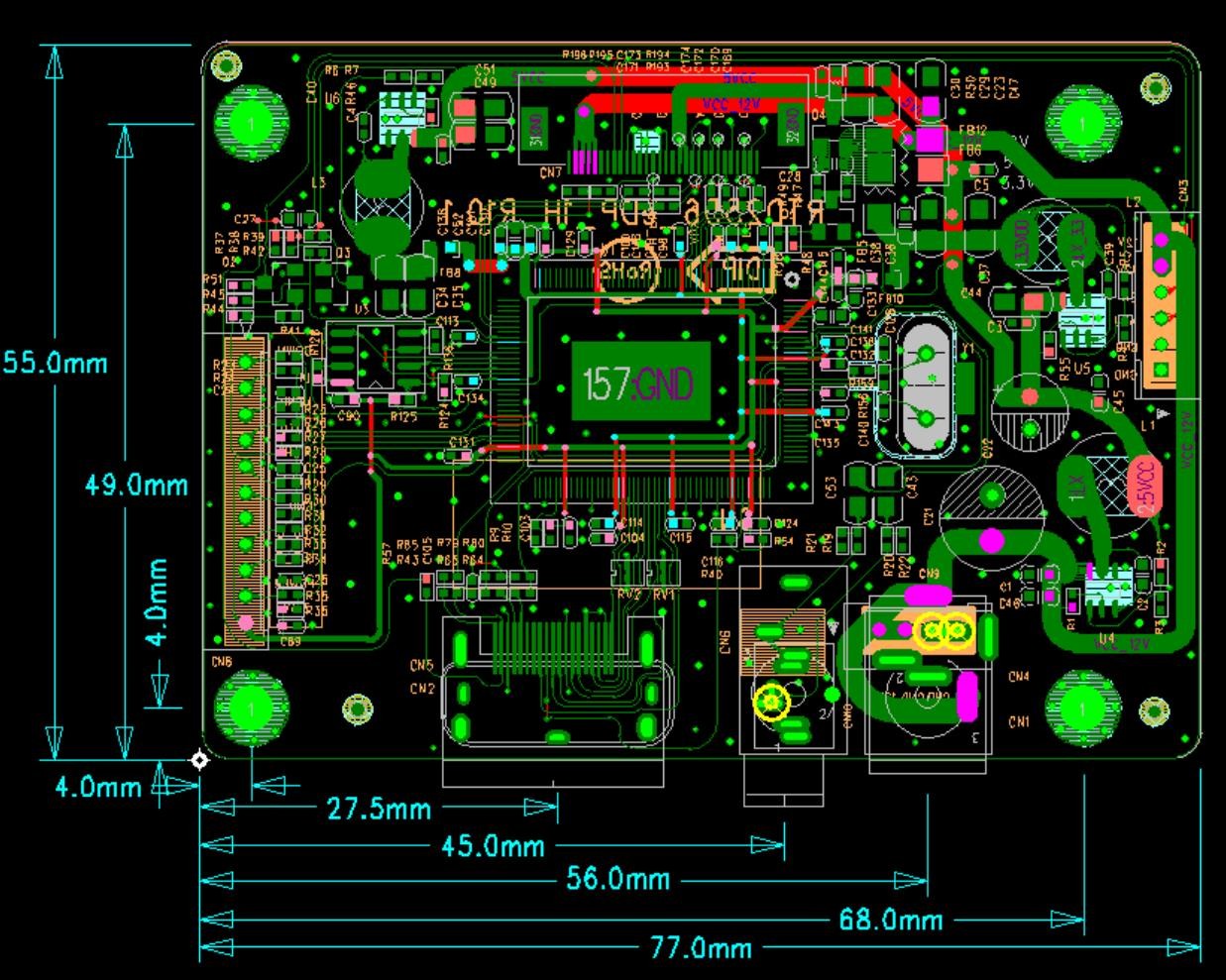

Board Size:
